Introduction to the Topic: 20–50 Bed Hospital Ideal Layout

A 20–50 bed hospital is one of the most in-demand healthcare facility types in Pakistan, especially in developing urban areas, district towns, and private healthcare sectors. These hospitals provide essential medical care without requiring large-scale infrastructure budgets.

Designing the ideal layout is critical because:

Hospitals must ensure smooth patient flow.
Medical staff need efficient working routes.
Emergency, OPD, IPD, and diagnostic areas must be strategically connected.
Compliance with Pakistan Health Infrastructure Guidelines is mandatory.
Patient safety, infection control, and hygiene standards depend on layout design.

In this blog, ACCO Construction provides a complete, professional, SEO-optimized guide to the perfect 20–50 bed hospital layout for entrepreneurs, investors, doctors, and healthcare organizations planning a new facility.

Understanding the 20–50 Bed Hospital Layout

The layout of a 20–50 bed hospital depends on:

Number of departments
Clinical functions
Type of services
Flow between units
Land size and location
Regulations by Punjab Healthcare Commission (PHC)
Budget and construction approach (PEB, RCC, or hybrid)

Below is a complete breakdown.

Core Components of a 20–50 Bed Hospital

1. Entrance & Reception Zone

A professional and functional entrance area includes:

Reception counter
Waiting lounge
Emergency access
Wheelchair access
Security/registration area
Pharmacy (optional)

Average area required: 700–1,200 sq ft.

2. Outpatient Department (OPD)

Typically includes:

4–10 consultation rooms
Triage room
Minor procedure room
Waiting area
Treatment room

Area requirement: 1,200–2,000 sq ft.

3. Emergency Department

For a 20–50 bed hospital, emergency is critical:

2–4 emergency beds
Trauma room
Resuscitation room
Doctor/nurse station
Separate entry

Area requirement: 800–1,200 sq ft.

4. Inpatient Department (IPD)

This includes:

20–50 beds
General ward
Semi-private rooms
Private rooms
Nursing stations
Storage
Clean/dirty utility

Area requirement: 5,000–8,000 sq ft depending on design.

5. Diagnostic & Imaging

X-Ray room
Ultrasound room
Mammography (optional)
CT scan (optional for 50 beds)

Area requirement: 1,000–1,800 sq ft.

6. Operating Theatre (OT) Complex

Standard OT block includes:

1–2 main OTs
1 minor OT
Scrub area
Sterilization
Recovery room
Nurse station
Anesthesia room

Area requirement: 1,500–2,500 sq ft.

7. Pathology Laboratory

Includes:

Sample collection room
Microbiology
Hematology
Biochemistry
Technician area

Area requirement: 600–900 sq ft.

8. ICU / HDU

For 20–50 bed hospitals:

2–6 ICU beds
4–8 HDU beds

Area requirement: 800–1,400 sq ft.

9. Maternity / Gynae Unit

Optional based on scope:

Delivery room
Labour room
Neonatal nursery
Waiting area

Area requirement: 1,000–1,500 sq ft.

10. Support Services

Kitchen
Laundry
Storage
Maintenance rooms
Staff lounges
Changing rooms
Server room
Admin offices

Area requirement: 1,000–2,000 sq ft.

Ideal 20–50 Bed Hospital Space Distribution (Table)

Department	Recommended Area (sq ft)
Entrance + Reception	700 – 1,200
OPD	1,200 – 2,000
Emergency	800 – 1,200
IPD (wards/rooms)	5,000 – 8,000
OT Complex	1,500 – 2,500
ICU/HDU	800 – 1,400
Diagnostics	1,000 – 1,800
Lab	600 – 900
Gynae/Delivery	1,000 – 1,500
Support Services	1,000 – 2,000
Total	13,600 – 22,500 sq ft

For a multi-storey design (G+1 or G+2), this distribution becomes more efficient.

Key Principles for an Ideal Layout

1. One-Way Circulation Flow

Patients, staff, and supplies should never cross paths incorrectly.
Separate clean, semi-clean, and dirty zones.

2. Proximity Planning

Critical departments must be connected:

Emergency → Radiology
OT → ICU
OPD → Pharmacy
Lab → OPD

3. Infection Control

HEPA filtration in ICU/OT
Negative pressure in isolation rooms
Separate entry for emergency patients
Clean air conditioning zoning

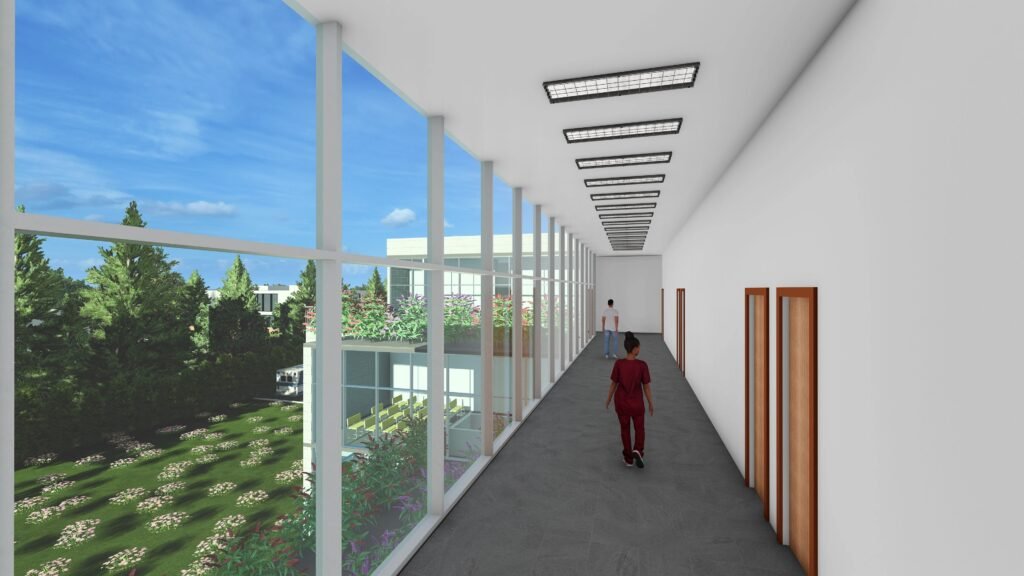

4. Accessibility

Wheelchair ramps
6 ft minimum corridor width
Elevator for G+ floors

5. Compliance with PHC & WHO Guidelines

Fire exits
Proper ventilation
Waste management
Water quality
Medical gas system

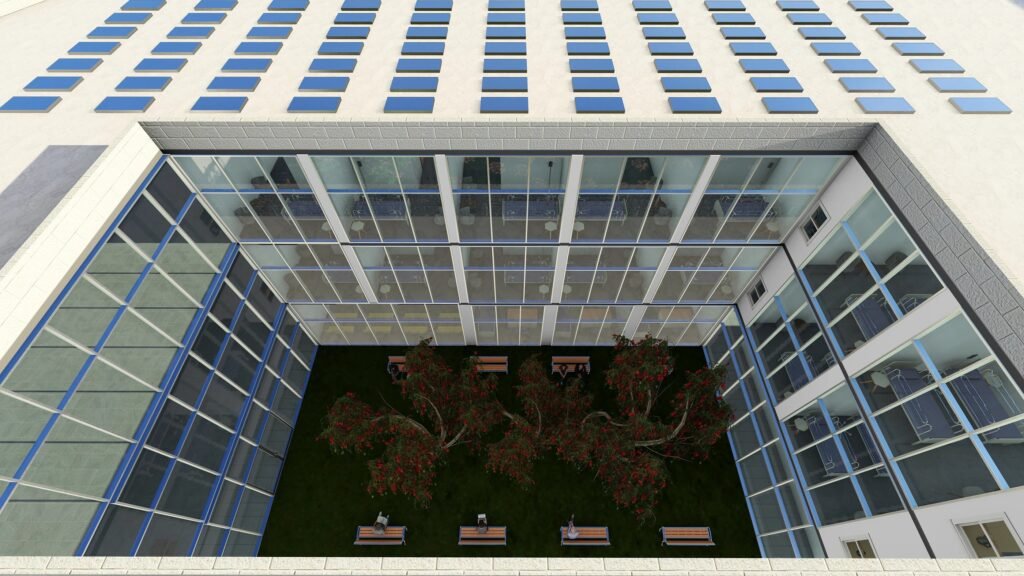

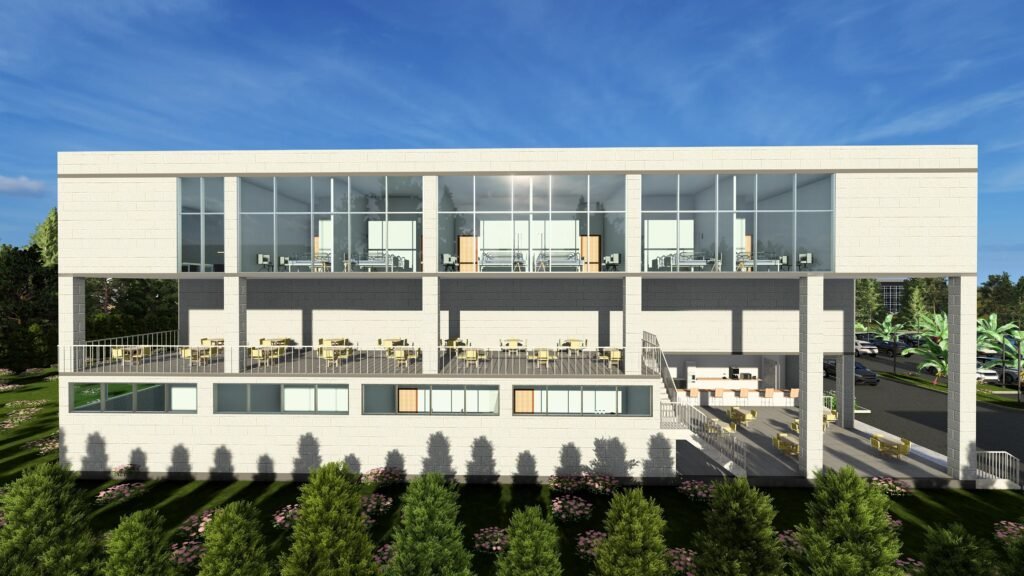

Architectural Layout Example (ACCO Standard)

Ground Floor (Recommended)

Reception & waiting
OPD rooms
Emergency
Radiology
Pharmacy
Laboratory
Minor OT

First Floor

IPD (general ward + semi-private rooms)
Private rooms
ICU / HDU
Staff lounge

Second Floor (optional for 50 beds)

OT complex
CSSD
Delivery suite
Admin block

This arrangement supports efficient flow and minimizes travel time for staff.

Pros and Cons of a 20–50 Bed Hospital Layout

Pros

Low investment compared to 100–300 bed hospitals
Quick construction time (especially PEB structures)
High operational efficiency
Profitable for private healthcare owners
Ideal for urban and rural areas
Flexible expansion options

Cons

Limited specialized services
Requires strong planning to avoid congestion
Higher dependency on referral networks for complex cases
Requires qualified staff and ongoing operational costs

Frequently Asked Questions (FAQs)

1. What is the ideal size of a 20–50 bed hospital?

Total area usually ranges between 13,000–22,500 sq ft, depending on departments.

2. How many floors are required?

Most 20–50 bed hospitals are G+1 or G+2, depending on land size.

3. What is the minimum land requirement?

At least 10,000–15,000 sq ft for efficient planning.

4. How many OTs are needed?

1 main OT and 1 minor OT for 20-bed;
2 main OTs + 1 minor OT for 50-bed.

5. Does ACCO provide turnkey hospital construction?

Yes. ACCO provides design, drawings, MEP planning, construction, finishing, and equipment layout.

Internal Links (ACCO Website)

House Construction in DHA Lahore
Commercial Plaza Construction Lahore
Hospital Construction Services Pakistan
PEB Building Construction
MEP Engineering Services

(You can insert actual URLs when uploading to your website.)

External Links (High Authority Reference Sources)

Government of Pakistan Healthcare Guidelines (construction.gov.pk)
Punjab Healthcare Commission Standards (phc.org.pk)
WHO Hospital Planning Guidelines
ArchDaily – Healthcare Design Trends
DAWN News – Healthcare Infrastructure Reports

Final Verdict

A 20–50 bed hospital is the ideal size for private investors, healthcare entrepreneurs, and medical professionals looking to start a functional, profitable, and efficient medical facility in Pakistan. With the right planning, the layout becomes highly efficient, easy to manage, and scalable for future expansion.

ACCO Construction specializes in creating fully compliant, well-planned, and modern hospital layouts that support:

Patient comfort
Staff efficiency
Infection control
Fast construction
Long-term sustainability

If you are planning a 20–50 bed hospital, ACCO’s design-build expertise ensures your project meets both international standards and local regulatory requirements.
