Operation Theater Design & Construction Standards

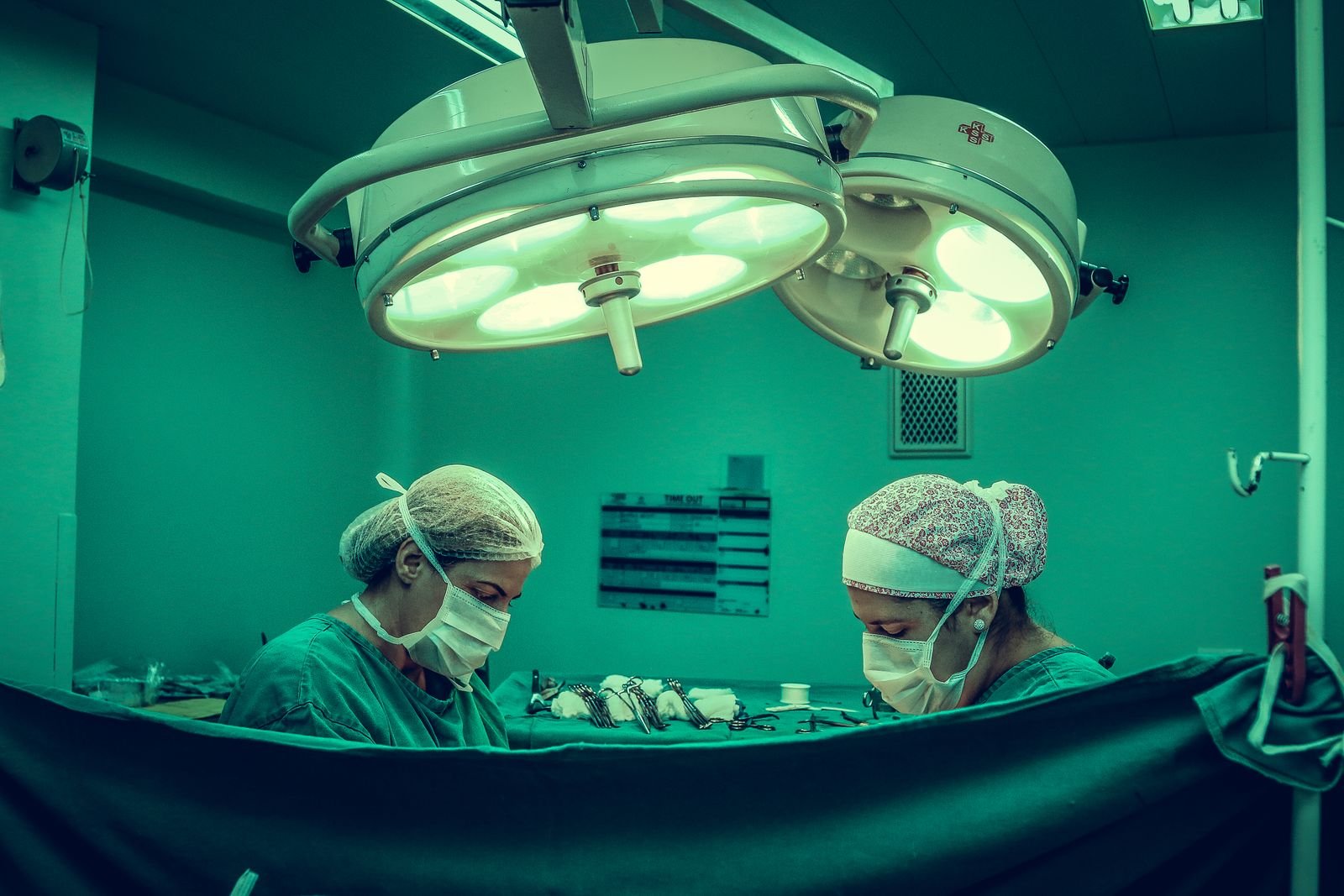

Operation theater design and construction Pakistan ACCO

Operation Theater Design & Construction Standards

By , CEO, Ahmed Construction Company (ACCO) · Updated · Reviewed by ACCO architects and engineers

Since 1998Design and construction in Lahore
Based in Gulberg-IIIHead office in Lahore
Architects + EngineersArchitecture, structure and MEP in-house
Free DrawingsOn award of construction

Quick Answer

Operation theater design and construction in Pakistan — modular OT, HVAC, medical gas, electrical, and PHC-compliant OT complex by ACCO. Ahmed Construction Company (ACCO), based in Gulberg-III Lahore since 1998, provides hospital design & construction services with design drawings free on award of construction.

The operation theatre (OT) is the most technically demanding room in any hospital. It must maintain ISO 5–7 cleanroom standards, positive pressure, precise temperature and humidity, uninterrupted electrical supply, sterile flow of instruments, and rapid patient turnaround — all while supporting increasingly complex surgical procedures. Getting operation theater design right is non-negotiable for any hospital that wants to survive licensing and deliver safe surgery.

Ahmed Construction Company (ACCO) has designed and built modular OT complexes for multi-specialty hospitals across Pakistan. This guide covers everything from OT classification and layout to HVAC standards, modular panel systems, and PHC-compliant OT construction.

—

🏥 What Is Operation Theatre Design?

Operation theatre design is the specialised discipline of planning surgical rooms and their support zones so that every element — airflow, lighting, gases, electrical supply, drainage, sterility — works together to protect the patient from infection and support the surgical team.

Classification of OTs

  • Class A (Ultra-Clean / Class 1): Cardiac, orthopaedic joint replacement, neurosurgery. ISO 5.
  • Class B (Standard / Class 2): General surgery, urology, ENT. ISO 6–7.
  • Class C (Emergency / Class 3): Trauma, C-section. ISO 7.
  • Class D (Ambulatory / Minor): Day-care surgery, endoscopy. ISO 8.

—

📏 Key OT Space Programme

  • Major OT: 40–60 m² (min 6.5 m x 6.5 m clear).
  • Anaesthesia induction room: 12–16 m².
  • Scrub area: 6–8 m² with 2–3 sinks per OT.
  • Sterile store: 15–25 m² per OT complex.
  • Recovery/PACU: 10–14 m² per recovery bed.
  • Dirty utility: 8–10 m² with dedicated exit.
  • Staff change/lockers: 15–25 m² male + female.
  • Sterile corridor: min 2.4 m wide.

—

🌬️ OT HVAC & Cleanroom Standards

ParameterClass A (Ultra-Clean)Class B (Standard)Class C (Emergency)
Air Changes / Hour25–4020–2515–20
FiltrationHEPA H14 (99.995%)HEPA H13HEPA H13
Airflow PatternLaminar (unidirectional)Turbulent mixingTurbulent mixing
Temperature18–22 °C19–24 °C20–25 °C
Humidity30–60%30–60%30–65%
Pressure+15 to +25 Pa+10 to +15 Pa+5 to +15 Pa
Noise< 45 dB(A)< 48 dB(A)< 50 dB(A)

—

🔌 OT Electrical & Medical Gas

  • Isolated Power System (IPS) with Line Isolation Monitor.
  • UPS-backed critical branch feeding OT lights, anaesthesia machine, monitors.
  • Equipotential earthing grid under floor.
  • Medical gas outlets: O2 (2–3), N2O (1), Medical Air (1–2), Vacuum (2–3), Scavenging (1).
  • Anaesthesia gas scavenging system (AGSS).
  • Pendant systems (surgical + anaesthesia) for cable-free surgical field.
  • OT control panel with time, temperature, humidity, pressure display.

—

🧱 Modular OT Panel Systems

Modern OTs use modular panel systems — pre-fabricated antibacterial panels (stainless steel, GRP, or glass) fixed to a hidden aluminium frame. Benefits:

  • Seamless, gasket-sealed joints eliminate dirt traps.
  • Antibacterial coating resists biofilm.
  • Concealed services within panel cavity.
  • Rapid installation (2–3 weeks per OT).
  • Easy panel replacement for future upgrades.

—

💡 OT Lighting & Visualization

  • Ceiling-mounted LED surgical light: 160,000–200,000 lux at 1 m.
  • Colour temperature: 3,500–5,000 K.
  • Colour Rendering Index (CRI): > 95.
  • Ambient LED ceiling with dimmer.
  • Surgical monitors on ceiling arm.
  • X-ray viewer / large monitor for imaging.

—

🧼 Sterility Workflow

  • Staff enters via change room → scrub → OT (clean flow).
  • Instruments arrive from CSSD via dedicated sterile lift/pass-through.
  • Dirty instruments exit via dirty utility → dirty lift → CSSD decontamination.
  • Patient enters via anaesthesia induction room → OT → recovery.
  • No crossover of clean and dirty flows anywhere in OT complex.

—

⚖️ Modular OT vs Conventional OT — Comparison

ParameterModular OTConventional Painted OT
SterilityExcellent — seamless panelsProne to cracks and dirt
Install Time2–4 weeks8–12 weeks (plaster + paint + curing)
Life15–20 years5–8 years before renovation
CostPKR 4.5–12 million per OTPKR 1.5–4 million per OT
PHC / JCI ComplianceFully compliantOften struggles at recertification

—

🏨 ACCO’s OT Portfolio

  • LDMC — 5-OT complex with modular panels and laminar flow.
  • MCH Islamkot — 2-OT maternity and general surgery.
  • Various private multi-specialty projects — modular OTs for orthopaedic and cardiac.

—

❓ Frequently Asked Questions

How much does a modular OT cost in Pakistan?

PKR 4.5–12 million per major OT depending on class, brand, and integrated features (pendants, imaging, hybrid OT capability).

What is a laminar flow OT?

An ultra-clean OT with unidirectional (laminar) HEPA-filtered airflow blanket over the surgical table — required for cardiac, joint replacement, and neurosurgery.

How long does OT installation take?

Modular OT: 2–4 weeks per theatre once civil works are complete. Full 5-OT complex: 6–8 weeks with parallel installation.

Do you supply medical equipment for OTs?

Yes. ACCO can procure OT tables, anaesthesia machines, surgical lights, pendants, monitors, C-arms, and hybrid-OT integration under a single turnkey contract.

What standards does ACCO follow for OT design?

ASHRAE 170, ISO 14644, HTM 03-01 (UK), NFPA 99, WHO surgical safety, and PHC OT specifications.

—
