Hospital Noise Control Techniques: Acoustic Design Guide for Pakistan

Hospitals are rarely quiet. Alarms, trolleys, ventilation, conversations, phones, generators and traffic combine into a constant background of sound, often at its worst at night when patients most need rest. Hospital noise control techniques use planning, construction details and engineering to keep that noise down. In Pakistan, where many hospitals sit on busy main roads, rely on standby generators and receive large numbers of visitors, acoustic design deserves far more attention than it usually gets. This guide explains where hospital noise comes from, what guideline levels exist, and the practical techniques that make wards, ICUs and consultation rooms quieter.

Why Noise Matters in Hospitals

Sleep is part of recovery. Patients woken repeatedly by alarms, conversations or banging doors sleep poorly, and poor sleep is linked to stress, confusion and slower recovery, especially in older and critically ill patients. Noise also affects staff: it makes concentration harder, contributes to fatigue and increases the risk of misheard instructions. Finally, poor acoustics undermine privacy. When conversations in consultation rooms or bed bays can be overheard, patients are less willing to share sensitive information.

The WHO’s Guidelines for Community Noise recommend that sound levels in hospital patient rooms be kept low, around 30 dB(A) on average, with night-time peaks of about 40 dB(A). Many hospitals around the world exceed these levels, which shows how difficult they are to achieve. They remain a useful target that guides design choices.

Main Sources of Hospital Noise

Clinical equipment and alarms

Monitors, infusion pumps, ventilators and call systems all produce alarms. In ICUs, alarm noise is often the dominant source.

People and activity

Staff conversations, handovers, visitors, phones, televisions, trolleys, bins with metal lids and doors closing all contribute.

Building services

Air handling units, fan coil units, ducts, chillers, pumps, lifts and especially diesel generators can create both airborne noise and vibration carried through the structure.

External noise

Road traffic, horns, rickshaws, construction sites and nearby commercial activity are significant for hospitals on main roads in Pakistani cities.

1. Plan the Layout for Quiet

The cheapest noise control happens on plan. Effective layout measures include:

• Placing wards and ICUs away from road frontage, plant rooms, lift motor rooms and loading bays
• Keeping generators, chillers and cooling towers in separate structures or well-isolated plant areas, away from bed spaces

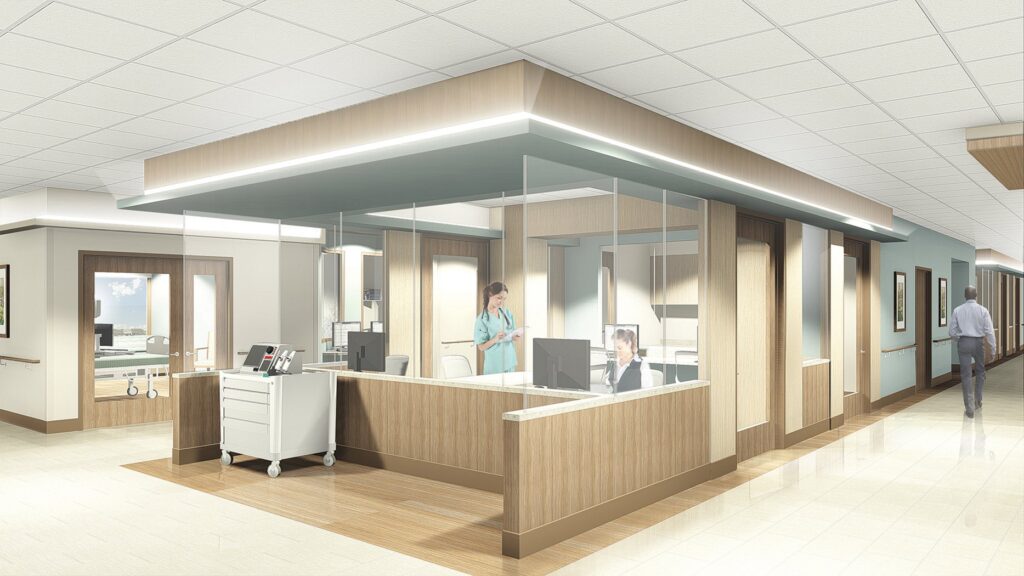

• Locating nurse stations so staff can see patients without conversations carrying into bed areas; enclosed or semi-enclosed staff work areas help
• Separating noisy public areas, such as OPD waiting and the main entrance, from inpatient floors
• Using single rooms or smaller bed bays where privacy and sleep are priorities

Our guide on patient flow in hospital design shows how zoning departments also helps control noise.

2. Walls, Floors and Doors

Sound passes through walls, gaps and doors. To reduce it:

• Build partitions between rooms full height to the structural slab, not just to the false ceiling, so sound does not travel over the top
• Use denser or double-layer partitions, with acoustic insulation in the cavity, between bedrooms, consultation rooms and noisy areas
• Seal gaps around pipes, ducts and cable trays where they pass through walls
• Specify solid-core doors with seals for consultation and counselling rooms
• Consider resilient floor finishes, which reduce footstep and trolley noise compared with hard tiles

3. Absorptive Ceilings and Surfaces

Hard, smooth surfaces common in hospitals reflect sound, so noise builds up in corridors and bays. Acoustic ceiling tiles that absorb sound reduce reverberation and make spaces feel calmer. In clinical areas, choose tiles that are cleanable and moisture-resistant, and in theatres or isolation rooms use sealed ceilings with acoustic treatment applied where infection control allows. Our guide to hospital finishing works discusses suitable ceiling and wall materials.

4. Quiet MEP and Plant Design

Building services are often the most persistent source of noise because they run continuously. Good MEP design includes:

• Selecting air handling units and fans for low noise at their operating point
• Keeping duct air velocities moderate and fitting attenuators where ducts serve sensitive rooms
• Mounting pumps, chillers, fans and generators on vibration isolators and using flexible connections
• Providing acoustic enclosures and exhaust silencers for generators
• Locating fan coil units and condensers away from bed heads

A coordinated hospital MEP system design balances acoustic, infection-control and energy requirements.

5. Glazing and External Noise

For hospitals on busy roads, the facade is the main defence against external noise. Double glazing with laminated glass, well-sealed frames and limited opening vents on road-facing sides make a large difference. Planting and boundary walls offer limited acoustic benefit but help visually. Where possible, wards should face away from the main road. Acoustic and daylight design go together; see our guide to natural light in hospital design.

6. Operational Measures

Design works best when combined with good practice:

• Alarm management: setting appropriate alarm limits, routing alarms to staff devices and reducing unnecessary alarms
• Quiet hours at night with dimmed lighting and fewer non-essential activities
• Soft-close bins and doors, well-maintained trolley wheels
• Visitor policies that limit crowding in wards

Noise Control by Department

ICU and HDU

Critical care units are among the noisiest areas in any hospital because of continuous monitoring and frequent interventions. Single-bed rooms or glazed cubicles, absorptive ceilings, central alarm monitoring at the nurse station and careful placement of equipment all help. See our guide to critical care units.

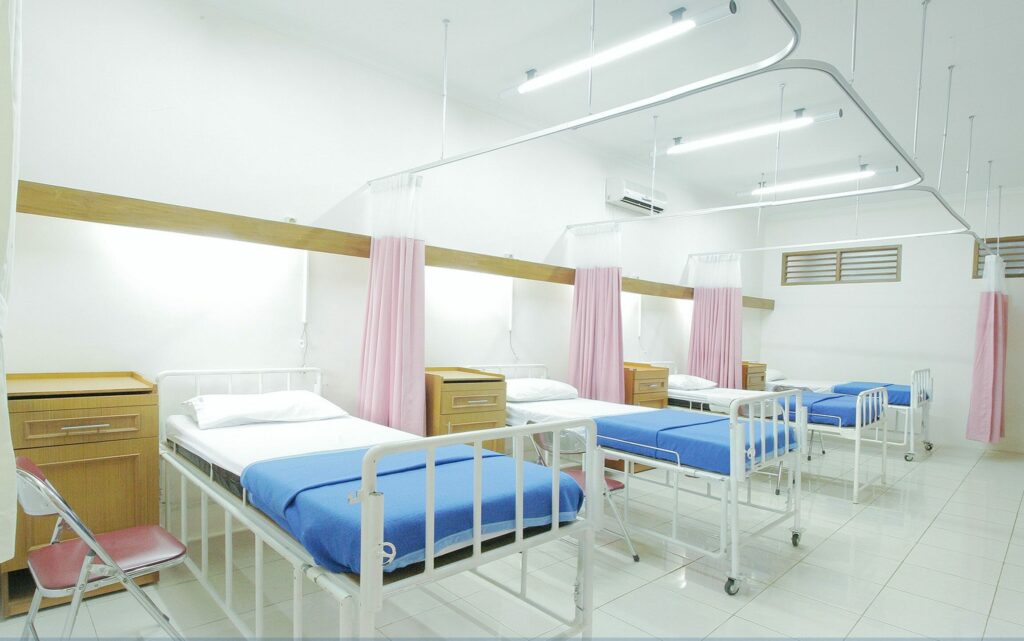

Wards

Smaller bays, full-height partitions, soft-close fittings and night-time lighting and noise routines make the largest difference.

Neonatal units

Premature babies are especially sensitive to noise, so NICUs need particularly careful acoustic treatment and quiet equipment.

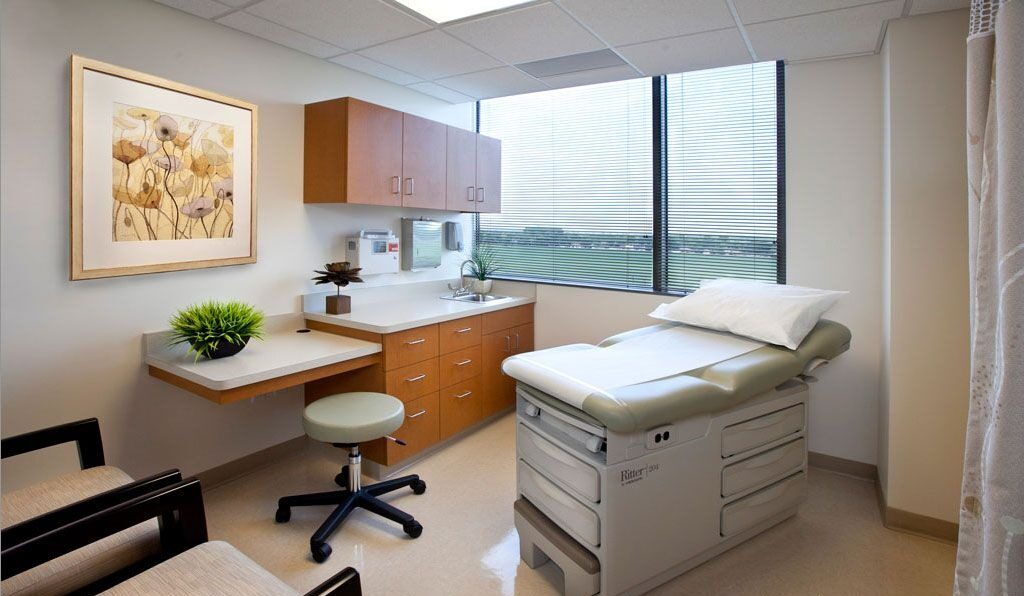

OPD and consultation rooms

Here the main concern is speech privacy rather than sleep. Insulated walls, sealed doors and background sound masking in waiting areas prevent conversations being overheard.

Common Acoustic Mistakes

• Stopping partitions at the false ceiling
• Placing generator rooms or chillers directly below or beside wards
• Using hard tiles everywhere, with no absorptive surfaces
• Open nurse stations right next to bed heads
• Single glazing on wards facing busy roads

Noise Control Techniques Compared

Improving Acoustics in Existing Hospitals

Many hospitals in Pakistan are already built, so retrofits matter. A practical approach is to measure noise levels in key areas, identify the dominant sources, and target the most effective fixes: acoustic ceiling tiles in corridors and wards, door seals in consultation rooms, generator enclosures, replacement of noisy fan coil units, and better glazing on road-facing wards. These can often be phased with other hospital renovation and upgrade works.

Measuring Noise Before and After

Acoustic improvements should be based on measurements, not guesswork. A simple survey with a calibrated sound level meter, taken at different times of day and night in wards, ICU, corridors and consultation rooms, shows where levels are highest and which sources dominate. Repeating the survey after works confirms whether the changes have helped and guides the next phase of improvements.

Frequently Asked Questions

Conclusion

Effective hospital noise control techniques combine good layout, sound-insulating construction, absorptive finishes, quiet MEP design and sensible operations. Most of these are inexpensive when planned early and costly to add later. For hospitals designed around patient rest and privacy, see ACCO’s hospital design and construction services.
