Your new hotel in DHA Lahore is almost complete. The finishes are beautiful. The furniture is installed. But on the first day of operations, you discover a problem. The fifth floor bathrooms have no water pressure. The tenth floor kitchen drains are backing up. The water heater for the eighth floor is undersized—guests complain of cold showers. The plumbing contractor shrugs. “We installed what you approved.” But no one designed the system properly.

Or consider a textile mill in Faisalabad. The dyeing process uses large volumes of hot water. The plumbing system was installed without proper engineering. Pipe sizes are wrong, causing pressure drops at peak demand. The return piping is undersized, causing thermal expansion issues. Pipes leak constantly. The maintenance team spends hours chasing leaks instead of maintaining production equipment.

Plumbing piping engineering is often overlooked in Pakistan’s construction industry. Many projects rely on plumbers’ “experience” rather than proper engineering calculations. The result is low pressure, clogged drains, undersized water heaters, leaks, and costly rework. Ahmed Construction Company (ACCO) has spent over 25 years providing professional Plumbing Piping Engineering services in Pakistan for residential, commercial, and industrial projects. From our headquarters in Gulberg-III, Lahore, and our office in Karachi, we design complete plumbing systems: water supply, sanitary drainage, stormwater drainage, hot water recirculation, and firefighting piping. When you need plumbing that works, ACCO delivers engineering excellence.

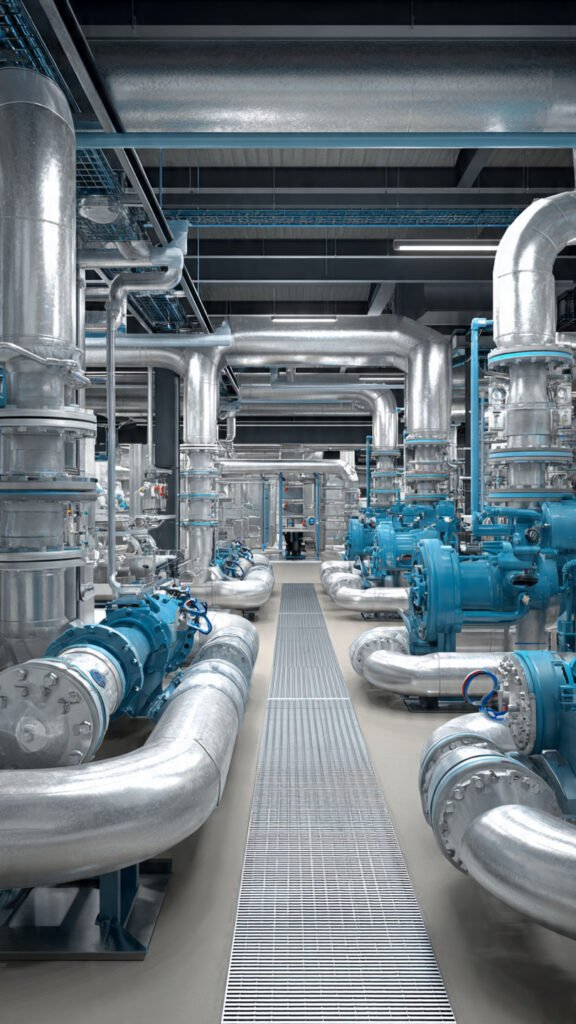

What Is Plumbing Piping Engineering?

Plumbing piping engineering is the discipline of designing water supply, sanitary drainage, stormwater drainage, and related piping systems for buildings and industrial facilities. It goes far beyond simply connecting pipes. Proper plumbing engineering includes: Water demand calculation to determine required flow rates and pipe sizes (using fixture unit method per IPC or UPC), Sanitary drainage design including venting to prevent trap seal loss, Hot water recirculation design to ensure instant hot water at fixtures, Pipe material selection (copper, CPVC, PEX, UPVC, GI, HDPE) based on application and water quality, Thermal expansion management to prevent pipe stress and failure, Pressure loss calculation to ensure adequate flow at highest fixtures, Backflow prevention to protect potable water from contamination, and Coordination with structural and architectural elements (avoiding beams, walls, and finishes).

In Pakistan, where water pressure varies significantly (low pressure from municipal supply in some areas, high pressure from overhead tanks in others) and water quality issues (hard water, sediment, chlorine) affect pipe longevity, plumbing engineering is especially critical. Our Plumbing Piping Engineering services in Pakistan follow International Plumbing Code (IPC) or Uniform Plumbing Code (UPC) as appropriate, coordinated with local building codes. We integrate plumbing with your building design and architectural engineering plans—ensuring pipes fit within walls, ceilings, and chases without conflicting with structure or mechanical systems. Our architectural drafting team produces detailed isometric riser diagrams, floor plans, and section drawings.

ACCO – 25+ Years of MEP Engineering Excellence

Ahmed Construction Company (ACCO) has been a trusted partner for Pakistan’s building and industrial sectors for over two decades. Our office at Office 2, 3rd Floor, Bigcity Plaza, Gulberg-III, Lahore, serves as our engineering headquarters, while our Karachi branch handles clients in the southern region. Together, we have delivered over 500 projects including complete plumbing piping designs.

Our client list includes major names such as Meezan Bank, Bata, PTC, BUITMS, Savour Foods, Alpine, Lake View, and Gerry DNATA. These organizations trust ACCO because we deliver complete, coordinated MEP solutions. Our multi-disciplinary team includes plumbing engineers, mechanical engineers, architectural engineering specialists, and 3D architectural walkthrough experts working under one roof. When you request Plumbing Piping Engineering services in Pakistan from ACCO, you get designs that are code-compliant, coordinated, and constructible.

Our Complete Plumbing Piping Engineering Service Breakdown

We provide comprehensive plumbing engineering for all project types. Below is a detailed breakdown of our capabilities.

Water Supply Piping Design (Potable & Non-Potable)

We design complete water supply systems from utility connection or bore well/overhead tank to all fixtures. This includes: Water demand calculation (gallons per minute or liters per second based on fixture units), Pipe sizing (using Hazen-Williams equation to determine diameter for acceptable pressure drop), Pressure zone management (booster pump design for high-rise buildings), Pipe material and fitting selection (copper for hot water, CPVC/PEX for cold water, GI for large mains), Water hammer protection (air chambers or arrestors), Backflow prevention (RPZ or double check valves at cross-connections), and Isolation valve placement.

• Residential: Homes, apartments, housing schemes
• Commercial: Offices, hotels, banks, shopping malls
• Industrial: Factory water supply for processes, canteens, washrooms
• Healthcare: Hospitals with complex water quality requirements

Sanitary Drainage & Vent Piping Design

Sanitary drainage removes wastewater safely while preventing sewer gases from entering the building. We design: Drainage fixture unit (DFU) calculation to size branch and stack drains, Pipe slopes (typically 2% for small pipes, 1% for larger), Vent piping to prevent trap seal loss (wet vents, dry vents, circuit vents, loop vents), Grease interceptors for commercial kitchens, Oil separators for workshops and garages, and Pumped drainage systems (sewage ejector) for below-grade fixtures. We ensure compliance with minimum pipe sizing and maximum fixture loading per code.

Stormwater Drainage Piping Design

Rainwater must be collected and drained away from buildings. We design: Roof drain and gutter systems, Downspout and conductor sizing based on rainfall intensity (Pakistan building code design values), Underground storm drainage piping, Retention/detention systems where required by local regulations, and Parking lot and driveway drainage channels.

Hot Water Recirculation & Solar Integration

For commercial and multi-story residential buildings, instant hot water is expected. We design: Hot water demand calculation, Recirculation pump sizing (based on heat loss from pipes), Return piping layout (balancing loops or reverse return), Water heater selection (tank type or instantaneous/tankless), Solar water heater integration (sizing of solar collectors and storage tanks), and Temperature maintenance controls (thermostatic mixing valves to prevent scalding).

Firefighting Piping (Wet & Dry Risers)

For commercial and high-rise buildings, firefighting piping is mandatory. We design: Wet riser systems (pressurized pipes with fire hose connections on each floor), Dry risers (for unheated buildings, filled only during fire), Fire pump and jockey pump selection, Hydrant layout for building perimeter, Fire hose reel and landing valve placement, and Sprinkler system piping for NFPA-compliant installations.

Compressed Air & Industrial Piping

For industrial facilities, we design: Compressed air piping (copper or aluminum for dry air, galvanized steel caution due to corrosion when air contains moisture), Process water piping (cooling water, boiler feed, wash-down), Chemical waste piping (acid-resistant PP or PVDF for laboratory drains), and Steam and condensate return piping (with proper slope, expansion loops, insulation).

Plumbing Shop Drawings & Coordination (BIM)

We produce detailed construction drawings: Plumbing floor plans (pipe routes, fixture locations, valve placements), Riser diagrams (isometric showing vertical stacks), Isometric drain, waste, and vent (DWV) diagrams, Water supply isometrics, Coordination drawings (overlayed with structural, electrical, and HVAC to resolve clashes), and Section details (pipe penetrations through walls, floors, and roofs with sleeves). Using BIM modeling (Revit), we coordinate with our architectural engineering team to ensure pipes fit without field conflicts.

Comparison: ACCO vs. Typical Plumber

Most projects rely on plumbers’ field experience without engineering calculations. ACCO provides full engineering. See the comparison below.

Our 9-Step Plumbing Piping Engineering Process

We follow a systematic, code-based process to deliver complete plumbing designs.

1. Step 1 – Building & Fixture Data Collection
   We obtain architectural floor plans (from your home floor plan design or building plans). We list all plumbing fixtures: water closets (WCs), urinals, lavatories, kitchen sinks, floor drains, showers, wash basins, etc. We note fixture locations and floor levels.
2. Step 2 – Water Supply & Drainage Demand Calculation
   We calculate fixture units for water supply (WFU) and drainage (DFU) per IPC or UPC. For water supply, we convert WFU to flow rate (GPM or L/s). For drainage, DFU determines pipe sizing.
3. Step 3 – Sizing Water Supply Piping
   Using Hazen-Williams equation (C=140 for copper/CPVC, C=120 for steel), we size water supply branches, risers, and mains. We ensure adequate pressure (typically 20-80 PSI) at highest fixture.
4. Step 4 – Water Heater & Recirculation Sizing
   For hot water systems, we calculate peak hour demand. We size water heater (gas or electric) or solar thermal system. For recirculation, we calculate heat loss from pipes and size recirculation pump (GPM and head).
5. Step 5 – Sanitary Drainage & Vent Sizing
   We size branch drains, stack drains, and building drains using DFU tables. We design vent system: stack vents, circuit vents, loop vents, as needed. We verify that each fixture trap is properly vented.
6. Step 6 – Stormwater Drainage Sizing
   We calculate roof area (square feet or square meters). Using rainfall intensity (Pakistan design values), we size roof drains, vertical conductors, and underground storm piping.
7. Step 7 – Pipe Material & Fitting Selection
   Based on application: Hot water: Copper (Type L or M) or CPVC. Cold water: CPVC, PEX, or UPVC. Sanitary drainage: UPVC (Schedule 40). Outside underground: HDPE or PVC. Firefighting: Steel (black or galvanized). We also specify fittings types (sweat solder, solvent weld, press-fit, threaded).
8. Step 8 – Coordination & Clash Detection (BIM)
   Using Revit or AutoCAD, we overlay plumbing drawings with structural (beams, columns), electrical (panels, conduits), and HVAC (ducts, diffusers). We resolve clashes by adjusting pipe routes or coordinating with other engineers. This prevents costly field rework.
9. Step 9 – Drawing Production & Final Deliverables
   We deliver: Plumbing floor plans (each level showing pipe routes, valves, fixtures), Riser diagrams (isometric showing vertical water supply, drainage, and vent stacks), Isometric details (hot water recirculation, water heater connections), Section details (pipe penetration through walls/floors with sleeves), Fixture schedule (counts and types), Valve schedule (isolation valves, backflow preventers, pressure reducing valves), and Bill of materials (pipe lengths, fittings, valves, hangers).

Why Pakistani Clients Nationwide Choose ACCO for Plumbing Engineering

Pakistan’s construction sector—residential housing schemes (DHA, Bahria Town, Lake City), commercial buildings (offices, hotels, hospitals), and industrial facilities (textile mills, food processing—all require reliable plumbing systems. Yet many projects suffer from persistent problems: low water pressure on upper floors (undersized risers), clogged drains (insufficient slope or venting), water hammer noise (no air chambers), and leaky hot water recirculation systems (improper thermal expansion management).

ACCO has earned the trust of clients including Meezan Bank (branch plumbing), textile mills in Faisalabad (process water piping), and BUITMS (campus plumbing). These clients choose us because we produce engineered drawings that contractors can follow without constant site visits. We also serve international clients in the UAE, UK, Saudi Arabia, Canada, and the USA who need Pakistani plumbing engineering expertise for their local projects.

ACCO by the Numbers: Plumbing Piping Engineering Excellence

The numbers below demonstrate our capability and track record in delivering Plumbing Piping Engineering services in Pakistan.

• 25+ years of continuous MEP engineering experience.
• 500+ projects completed including plumbing designs.
• 20+ industries served including residential, commercial, healthcare, industrial.
• 2 major offices (Lahore & Karachi) covering all of Pakistan.
• 5+ countries served outside Pakistan (UAE, UK, Saudi, Canada, USA).
• 10,000+ fixtures designed into our plumbing systems annually.
• 100% code compliant designs (IPC or UPC).
• 0 plumbing coordination conflicts using BIM methodology.

Frequently Asked Questions About Plumbing Piping Engineering

1. What is architectural engineering?

Architectural engineering combines building design with engineering principles. For plumbing, architectural engineering integrates pipe chases, floor penetrations (sleeves), and fixture placements with architectural finishes. Our team coordinates to avoid pipes exposed in finished spaces.

2. How do I get a floor plan designed for my house?

Getting a home floor plan design from ACCO is simple. Call us at +92 322 800 0190 or visit our contact page. Share your plot size (e.g., 5 marla, 10 marla, or 1 kanal) and budget. Our team will visit your site in DHA, Bahria, Model Town, or anywhere in Pakistan, take measurements, and provide initial concept sketches within 7–10 days.

3. What is the difference between architectural design and structural engineering?

Architectural design deals with aesthetics and space planning. Structural engineering ensures the building stands safely. For plumbing, our structural engineers ensure that pipe penetrations (through beams, slabs, columns) are located to avoid weakening the structure.

4. Do you provide 3D walkthroughs?

Yes. We create high-resolution 3D architectural walkthrough videos with plumbing systems overlaid (color-coded: blue for cold water, red for hot water, green for sanitary, orange for storm). This helps contractors visualize complex pipe routing.

5. What pipe material is best for Pakistan’s water quality?

Copper Type L is best for hot and cold water but expensive. CPVC is cost-effective for cold water but has temperature limits (max 180°F). GI (galvanized iron) is still used for mains but corrodes over time, especially with hard water or aggressive groundwater. PEX is excellent—flexible, corrosion-resistant, freeze-tolerant—but requires specialized fittings. We recommend based on your specific water test results and budget.

6. How much does plumbing engineering cost for a 10-marla house?

For a typical 10-marla home (3-4 bathrooms, 2 kitchens, outdoor hose bibs), our plumbing design fee ranges from PKR 25,000-50,000. This includes water supply sizing, drainage and vent design, hot water recirculation (if desired), fixture schedule, and coordinated floor plans.

7. Do you design septic systems for areas without sewer?

Yes. For housing schemes or facilities without municipal sewer connection, we design septic tanks and soakage pits. This includes calculating tank volume based on number of bedrooms/fixtures, drainfield sizing based on soil percolation test, and proper venting for the septic system.

8. What is a plumbing riser diagram?

A riser diagram is an isometric (three-dimensional) drawing showing all vertical pipe stacks (water supply risers, sanitary stacks, vent stacks) for the entire building. It shows pipe sizes, branch connections, cleanouts, and valves. This is essential for high-rise construction where vertical coordination is complex.

Ready for Professional Plumbing Engineering? Contact ACCO Today

Stop plumbing guesswork and field conflicts. ACCO’s Plumbing Piping Engineering services in Pakistan deliver code-compliant, coordinated, constructible designs. Whether you need a simple water supply layout for a home in DHA Lahore or a complex sanitary drainage system for a 20-story commercial tower, we have the expertise. Our unique ability to deliver everything from home floor plan design and architectural drafting to full 3D architectural walkthrough plumbing overlays to detailed BIM coordination makes us a trusted partner.

Call us now: +92 322 800 0190 or +923 111 749 849
Email: info@acco.com.pk
Visit our Lahore office: Office 2, 3rd Floor, Bigcity Plaza, Gulberg-III, Lahore (Mon–Sat, 9:00 AM – 6:30 PM)
Karachi office: Contact us for address and appointment.

Request a free consultation for Plumbing Piping Engineering services in Pakistan →

Explore our MEP portfolio on our Our Projects page. Learn how our Architectural Engineering team integrates plumbing with building design. See how BIM Modeling helps coordinate plumbing with structural and HVAC systems. Planning a new home or building? Start with our Home Floor Plan Design or visualize your plumbing system with Architectural 3D Modeling.

For authoritative information on plumbing codes, we recommend visiting the Pakistan Engineering Council (PEC), the International Code Council (ICC) for IPC, and the IAPMO for UPC.

Stop plumbing problems before they start. Start engineering reliability. Contact ACCO today to discuss your plumbing piping needs. Let us show you why we are a trusted choice for Plumbing Piping Engineering services in Pakistan.
